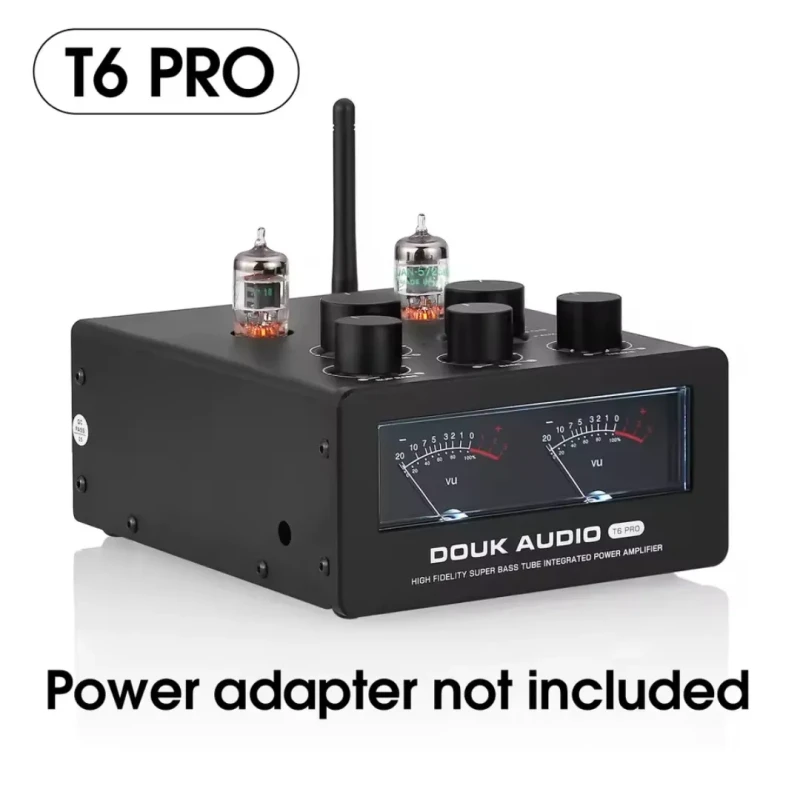

Te T6PRO is a compact tube amplifier designed by Douk Audio, combining cool design with exceptional performance. Adopting the combination of JAN5725 tubes and TPA3255 amp chip, the power output up to 300W for each channel can effortlessly drive 4-8Ω speakers, delivering impressive sound quality. With Bluetooth, 2 groups of stereo RCA and 3.5mm AUX inputs, preamp output besides speaker jacks output, easily to build multi-channel systems. Besides common treble and bass control, super bass low to 20Hz is added to achieve shocking bass effects. A whole piece of cool dark VU meter is used with dual panels and pointers swinging in real-time with audio signal changes, to get both auditory and visual enjoyment.
Features

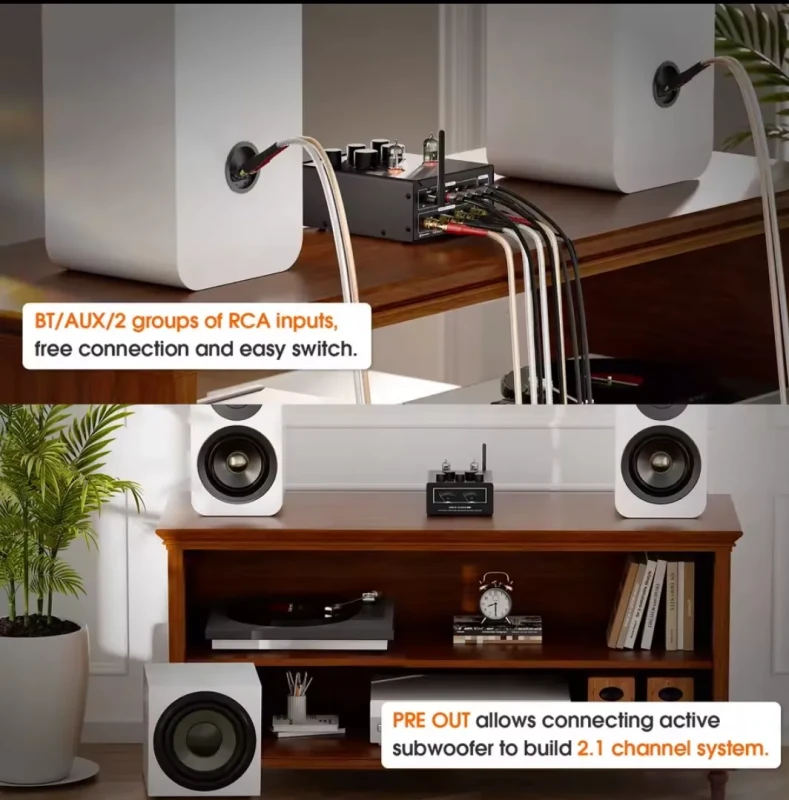

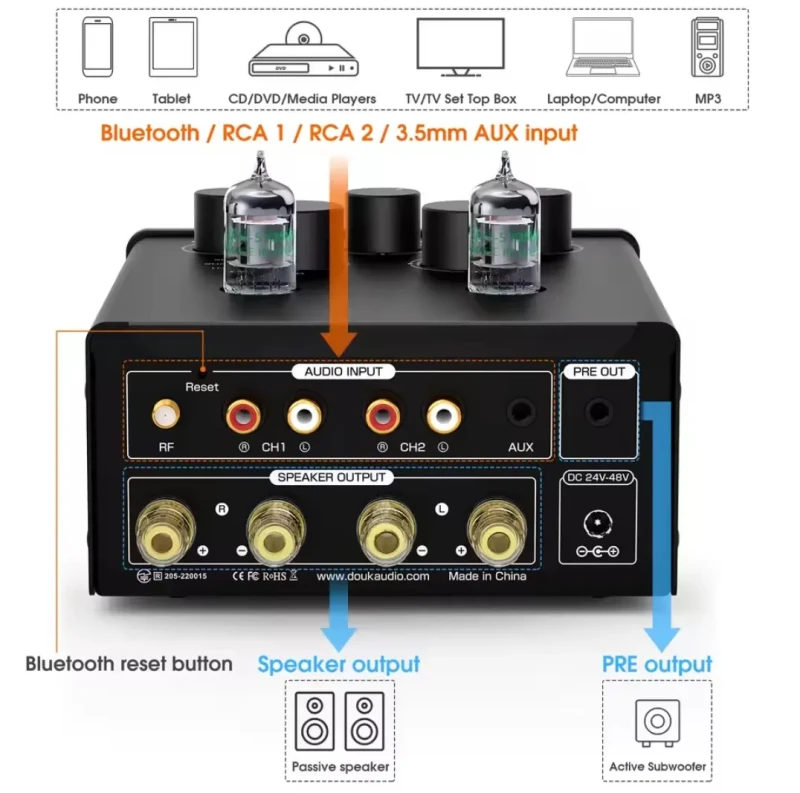

Q: What is the purpose of the pre-out port?
A: It can connect to another amplifier or active speakers/subwoofer to build 2.1 or multi-channel home theater systems.
Q: Is the volume of pre-out adjustable?
A: Yes, its volume, treble, bass, and super bass are all controlled synchronously with the speaker output.
Q: Can I use a different power adapter for higher output?

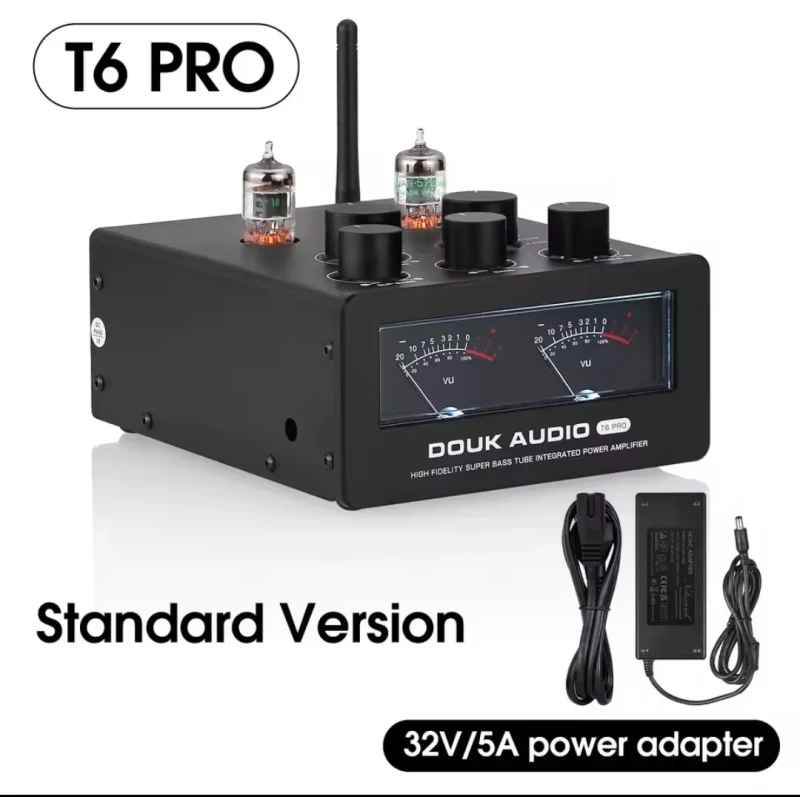

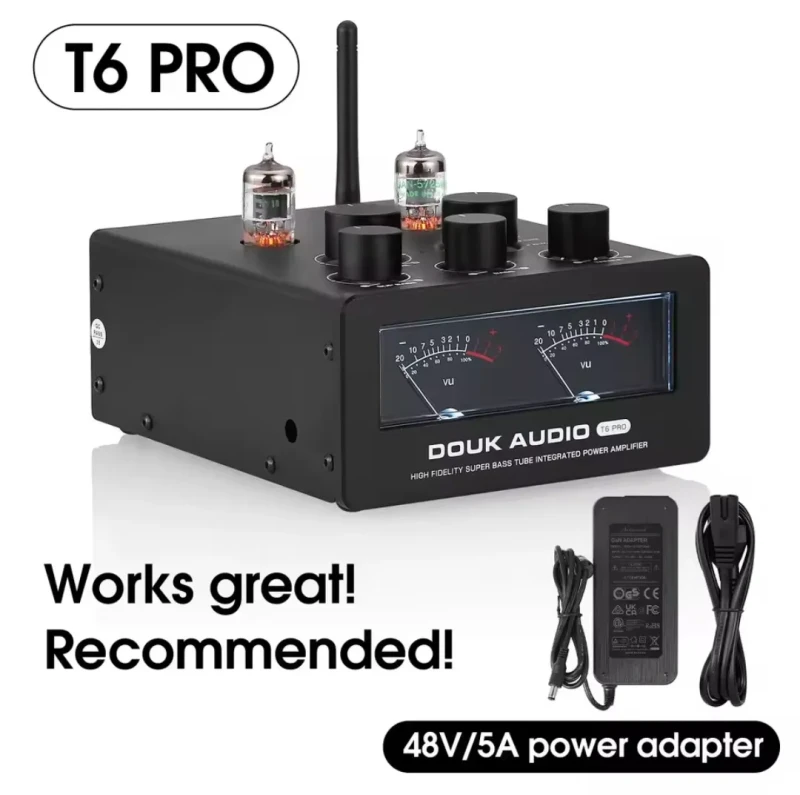

A: Yes, while a 32V/5A or 48V/5A adapter is optional, you may replace it with a higher-power 48v 10a adapter of your own for better performance.

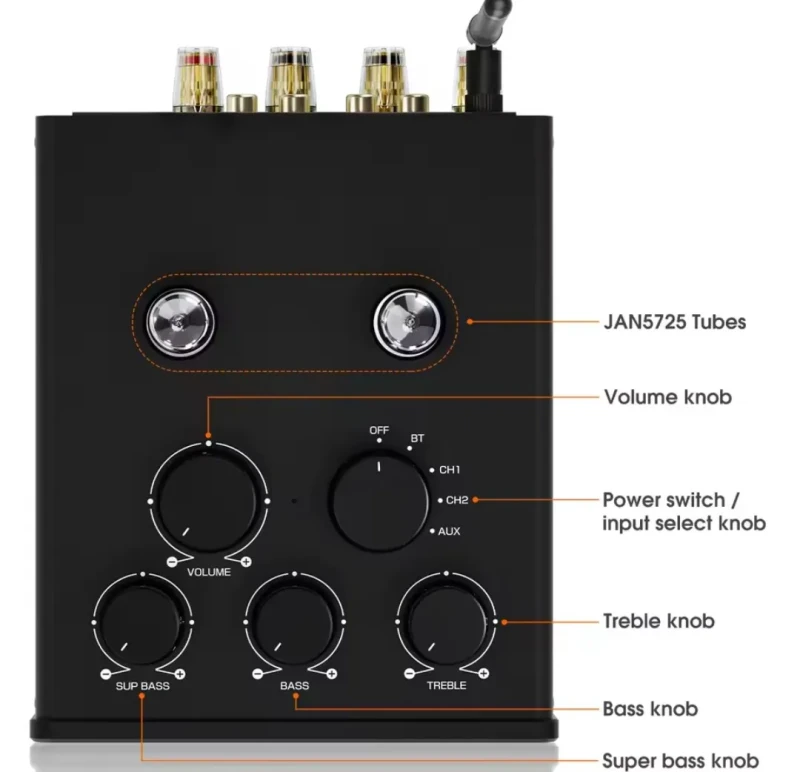

Q: Are the JAN5725 tubes replaceable?
A: Yes, they can be directly replaced by 6J1, 6J2, 6J3, 6J4, 6J5, 6K4, 6*IN, 6*4N, 6*5N, 5654, 6AK5, EF95, 6BA6, 403B etc.
Q: What’s in the box?
A: Includes the amp, tubes, power adapter, Bluetooth antenna, and user manual.
Parameters
Power Output Table of T6PRO
| Power Supply | Speaker Impedance | Rated Output Power |
| 32V/5A | 4Ω | 78W+78W |
| 6Ω | 71W+71W | |
| 8Ω | 65W+65W | |
| 48V/5A | 4Ω | 120W+120W |
| 6Ω | 110W+110W | |
| 8Ω | 102W+102W | |
| 48V/10A | 4Ω | 250W+250W |
| 6Ω | 210W+210W | |
| 8Ω | 185W+185W |
Packing List
| Product Code | DOUHFJEU54 |
| Condition | New |
| Weight | 3lb |
| Width | 5.5″ |
| Height | 2.72″ |
| Depth | 6.5″ |
Parameters
Power Output Table of T6PRO
| Power Supply | Speaker Impedance | Rated Output Power |
| 32V/5A | 4Ω | 78W+78W |
| 6Ω | 71W+71W | |
| 8Ω | 65W+65W | |
| 48V/5A | 4Ω | 120W+120W |
| 6Ω | 110W+110W | |
| 8Ω | 102W+102W | |
| 48V/10A | 4Ω | 250W+250W |
| 6Ω | 210W+210W | |
| 8Ω | 185W+185W |
